Plastic Half & Full Clamp
- The most affordable solution to keep tube off the mounting surface.
- Installation is fast and easy; snaps onto tube with preloaded nails or screws.
- Install in alternating directions to ensure secure piping 1/2”, 3/4” and 1” are available.
- UPC approval.
| Code | Nominal Pipe Size (IN) | A (mm) | B (mm) | L (mm) | T (mm) | H (mm) |
| Plastic Half Clamp | | | | | | |
| KPY115 | 1/2 | 15.9 | 36.5 | 21.0 | 9.5 | 25.4 |
| KPY125 | 3/4 | 22.2 | 34.0 | 28.7 | 9.5 | 28.0 |
| KPY150 | 1 | 28.6 | 41.6 | 35.4 | 11.7 | 36.0 |

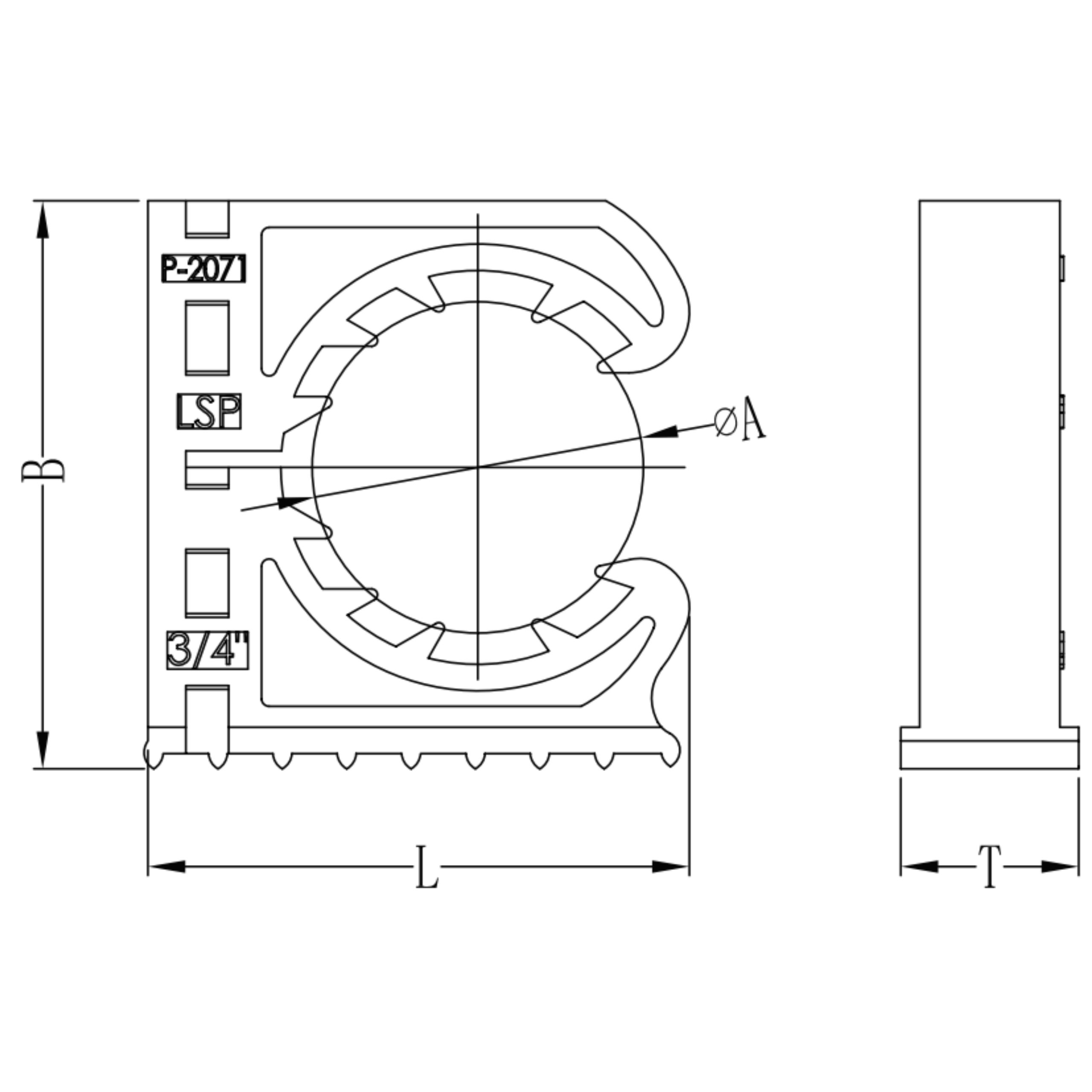

| Plastic Full Clamp | | | | | | |
| KPY215 | 1/2 | 15.9 | 32.8 | 27.9 | 9.5 | 38.1 |
| KPY225 | 3/4 | 22.2 | 38.1 | 36.3 | 9.5 | 45.7 |
| KPY250 | 1 | 28.6 | 48.8 | 42.9 | 11.7 | 53,3 |
