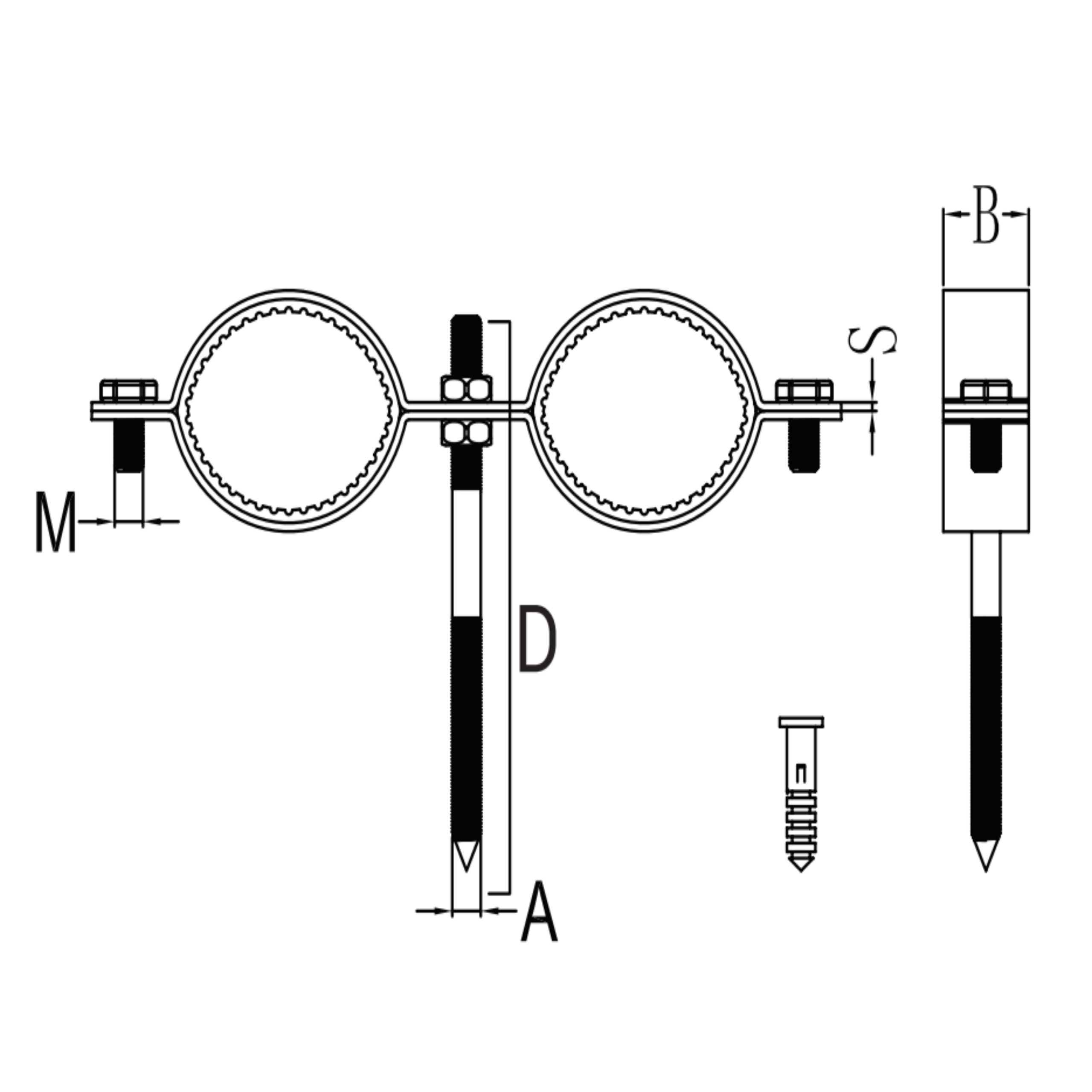

| Code | Nominal pipe size (mm) | Range (mm) | Diameter of Rod (M) (mm) | Diameter of Screw (A) (mm) | Length of Screw (A) (mm) | Width (B) (mm) | Thickness (S) (mm) |
|---|---|---|---|---|---|---|---|
| KPN450 | 18 | 15-19 | 6 | 8 | 80 | 20 | 1.5 |
| KPN451 | 22 | 20-25 | 6 | 8 | 80 | 20 | 1.5 |
| KPN452 | 28 | 26-30 | 6 | 8 | 80 | 20 | 1.5 |
| KPN453 | 35 | 32-36 | 6 | 8 | 80 | 20 | 1.5 |

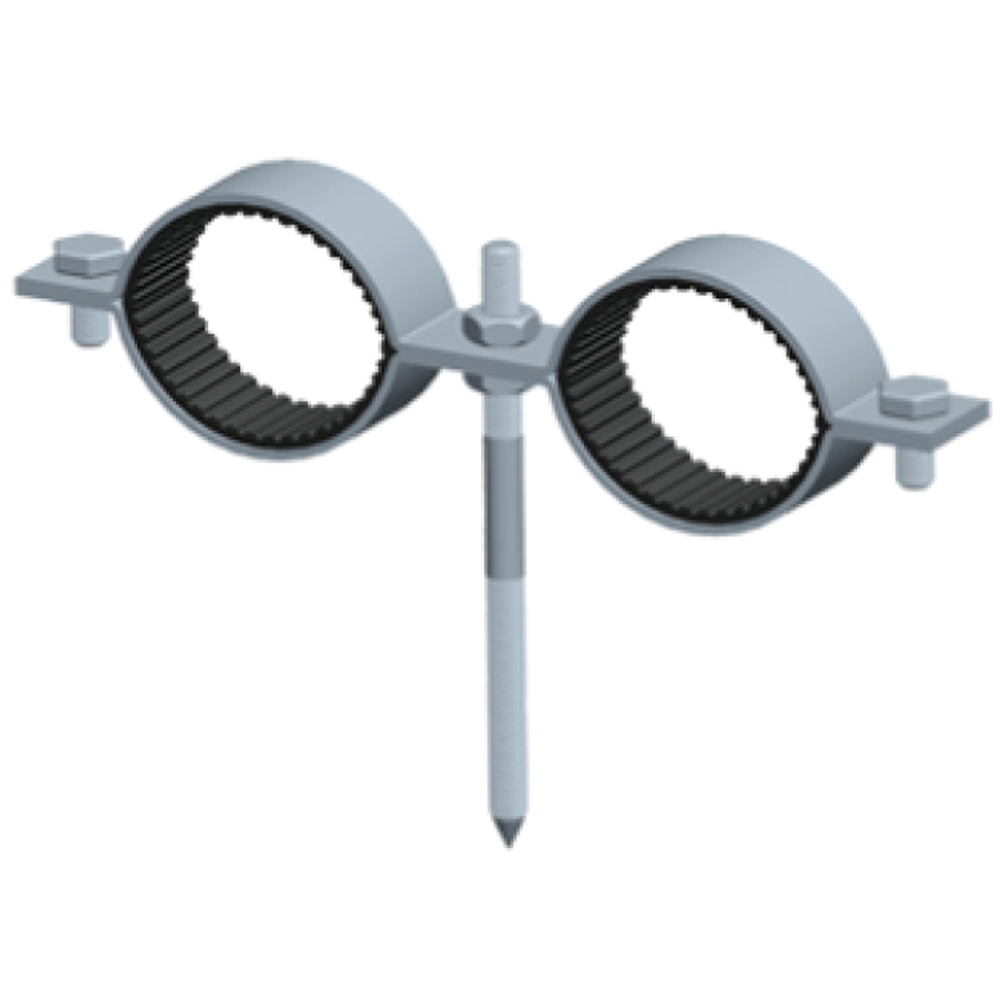

Double Rubber Lined Split Clamp with Screw
- Material: Carbon Steel.
- Finish: Electro-Zinc Plated.
- Size Range:3/8 “ through 1”
- M6 side screws with plastic washer.
- Plastic plug should be used for fixing.
