| Code | Nominal Pipe Size (mm) (IN) | Overall Length (A) (mm) (IN) | Height (B) (mm) (IN) | Thickness HS (mm) (IN) | Max. Rec. Load (kg) |
|---|---|---|---|---|---|
| KPD470 | 12.70 (1/2") | 214.31 (8-7/16") | 85.73 (3-3/8") | 10 (3/8") | 86.2 |
| KPD471 | 19.05 (3/4") | 222.25 (8-3/4") | 84.14 (3-5/16") | 10 (3/8") | 90.7 |
| KPD472 | 25.40 (1") | 230.19 (9-1/16") | 90.49 (3-9/16") | 10 (3/8") | 90.7 |
| KPD473 | 31.75 (1-1/4") | 238.13 (9-3/8") | 100.01 (3-15/16") | 10 (3/8") | 90.7 |
| KPD474 | 38.10 (1-1/2") | 247.65 (9-3/4") | 104.78(4-1/8") | 10 (3/8") | 90.7 |
| KPD475 | 50.80 (2") | 269.88 (10-5/8") | 117.48 (4-5/8") | 10 (3/8") | 186.0 |
| KPD476 | 63.5 (2-1/2") | 295.28 (11-5/8") | 130.18 (5-1/8") | 10 (3/8") | 186.0 |
| KPD477 | 76.20 (3") | 327.03 (12-7/8") | 146.05 (5-3/4") | 10 (3/8") | 186.0 |
| KPD478 | 101.60 (4") | 377.83 (14-7/8") | 171.45 (6-3/4") | 12 (1/2") | 272.2 |
| KPD479 | 127.00 (5") | 400.05 (15-3/4") | 198.44 (7-13/16") | 12 (1/2") | 272.2 |
| KPD480 | 152.40 (6") | 463.55 (18-1/4") | 228.60 (9") | 12 (1/2") | 385.6 |
| KPD481 | 203.20 (8") | 523.88 (20-5/8") | 279.40 (11") | 12 (1/2") | 385.6 |

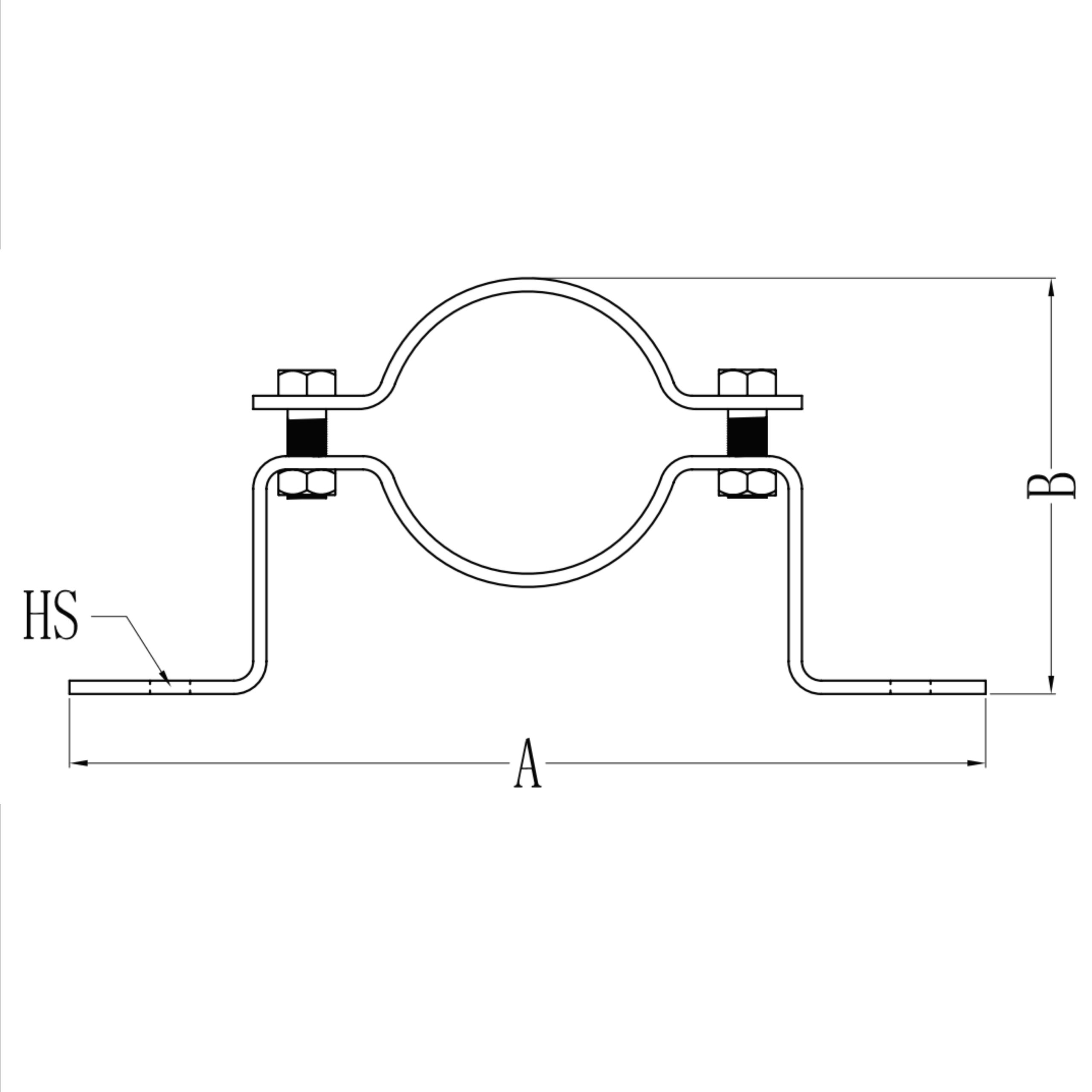

Offset Pipe Clamp
- Material: Steel.
- Size Range:1/2” through 8”.
- Finish: Zinc Colored Epoxy Plated;
- Industrial Pipe Hanger To Support Piping Away Wall Or Floor.
- Comply with Federal Specification WW-H-171E and American Manufacturers Standardization Socity MSS SP-69 &SP-58.
