| Code | Nominal Pipe Size (mm) | Range (mm) | Length (L) (mm) | H (mm) | Width (B) (mm) | Thickness (S) (mm) | Max. Rec. Load (kg) |
|---|---|---|---|---|---|---|---|
| KPN250 | 23 | 18-23 | 54.5 | 76 | 20 | 1.5 | 390 |
| KPN251 | 26 | 24-26 | 58.5 | 78 | 20 | 1.5 | 390 |
| KPN252 | 31 | 27-31 | 62.5 | 80 | 20 | 1.5 | 390 |
| KPN253 | 37 | 32-37 | 68.5 | 83 | 20 | 1.5 | 480 |
| KPN254 | 44 | 39-44 | 76 | 86.5 | 20 | 1.5 | 480 |
| KPN255 | 54 | 46-54 | 91.5 | 91 | 20 | 1.5 | 480 |
| KPN256 | 61 | 54-61 | 99 | 91.5 | 20 | 1.5 | 480 |
| KPN257 | 67 | 62-67 | 105 | 97.5 | 20 | 1.5 | 480 |
| KPN258 | 74 | 68-74 | 112 | 101 | 20 | 1.5 | 480 |
| KPN259 | 82 | 75-82 | 125 | 106 | 20 | 2.0 | 690 |
| KPN260 | 89 | 83-89 | 134 | 110 | 20 | 2.0 | 690 |

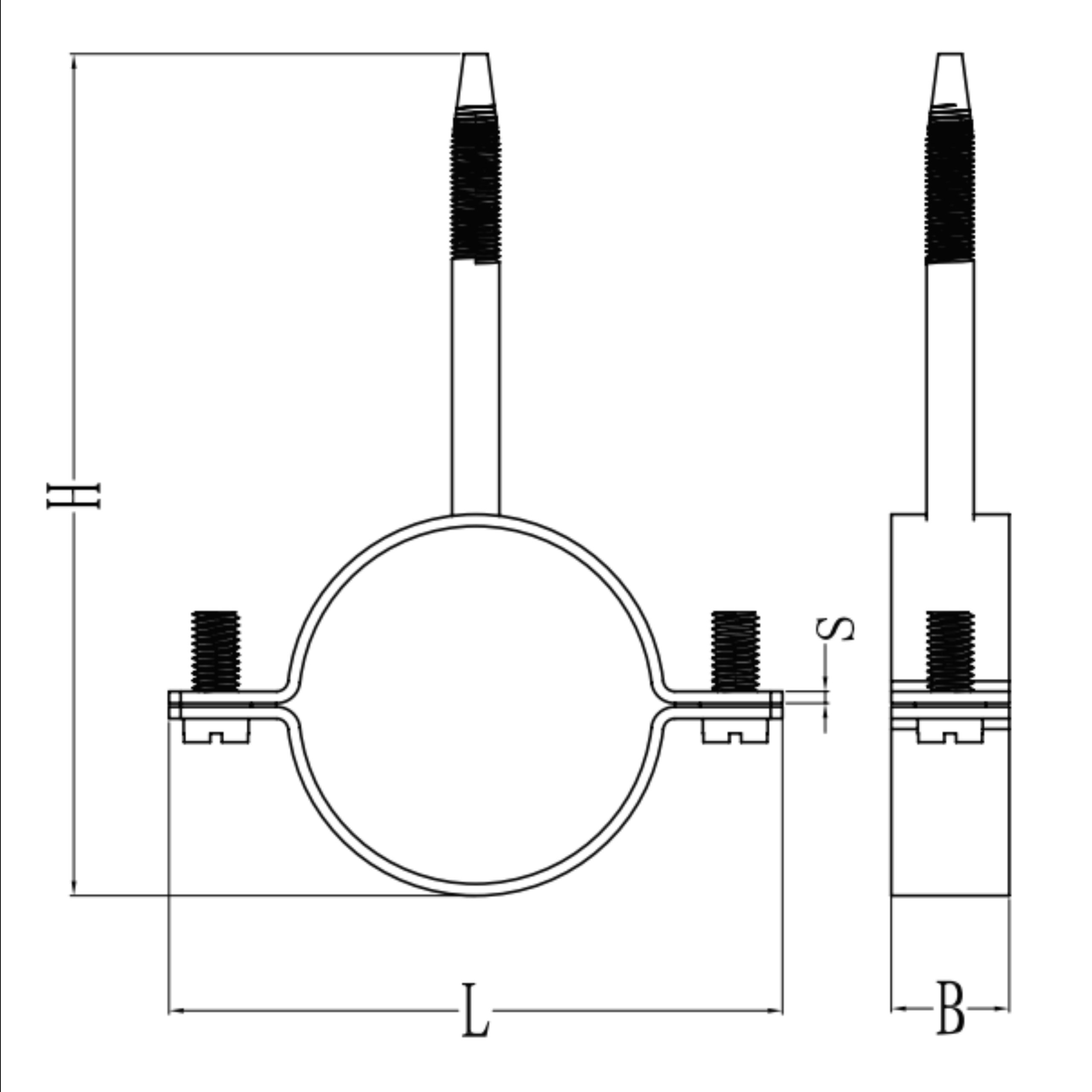

Split Pipe Clamp with Screw
- Used for mounting of pipes to the walls
- (Vertical/Horizontal) ceilings and floors.
- Material: Steel.
- Finish: Electro-Zinc Plated.
- Size Range:1/2” through 3”.
- M6 side screws with plastic washer.
