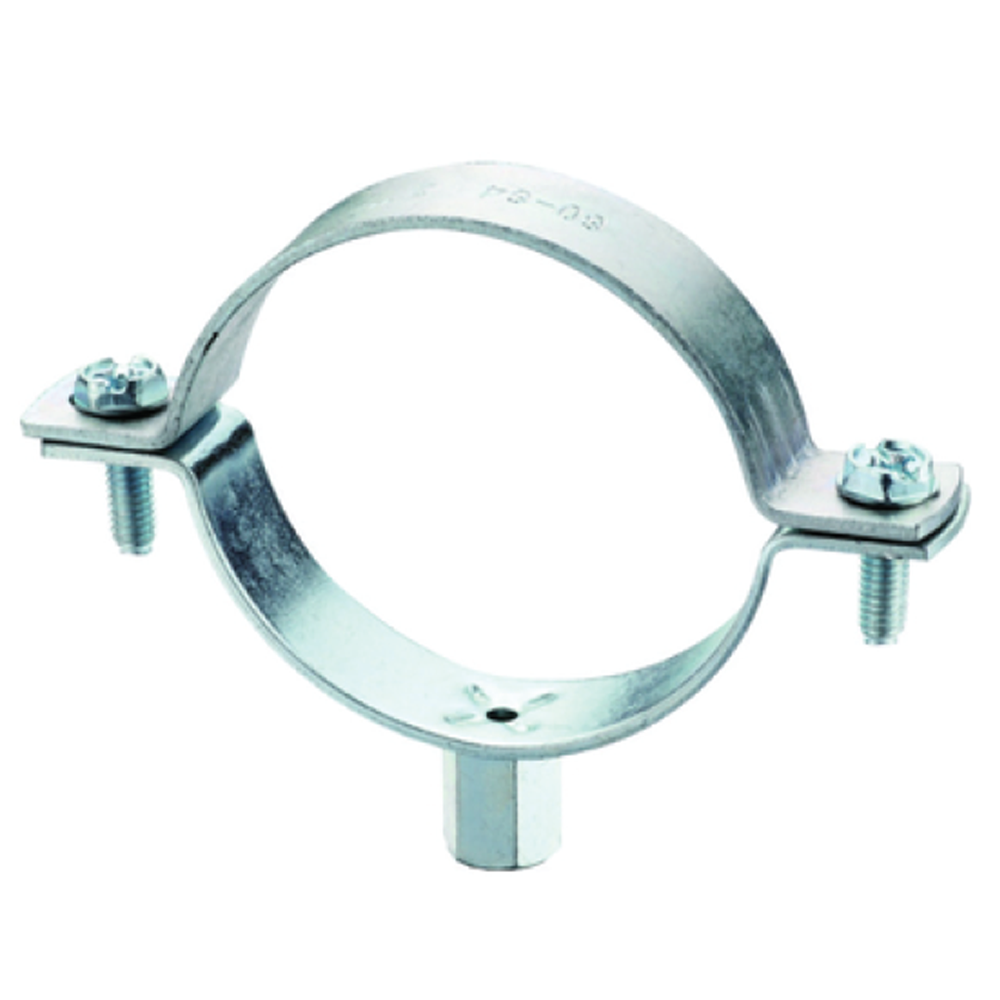

Split Pipe Clamp

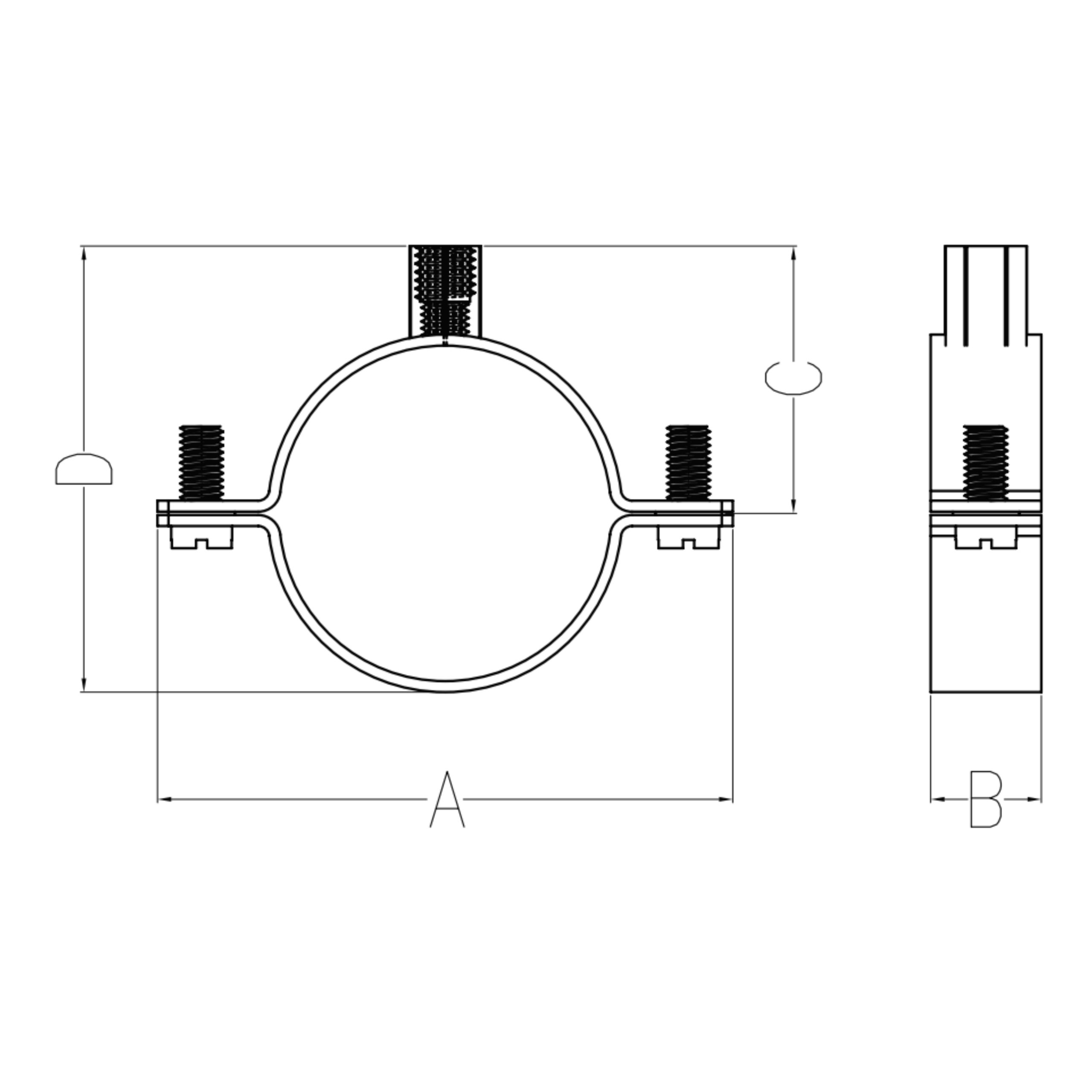

Code	Size (IN)	Nominal Pipe Size (mm)	Range (mm)	Rod Size (MM)	A (MM)	B (MM)	C (MM)	D (MM)	Max. Rec. Load (KG)
KPN850	3/8 "	18	15-19	8 + 10	59	20	23	30	200
KPN851	1/2 "	22	20-25	8 + 10	66	20	26	37	200
KPN852	3/4 "	28	26-30	8 + 10	72	20	29	43	200
KPN853	1 "	35	32-36	8 + 10	79	20	33	50	200
KPN854	1-1/4 "	42	38-43	8 + 10	86	20	36	57	200
KPN855	1-1/2 "	48	47-51	8 + 10	92	20	39	63	200
KPN856	-	54	53-58	8 + 10	98	20	42	69	200
KPN857	2 "	60	60-64	8 + 10	104	20	45	72	200
KPN858	-	63	63-66	8 + 10	108	20	47	75	200
KPN859	-	70	68-72	8 + 10	114	20	50	85	200
KPN860	2-1/2 "	75	75-80	8 + 10	119	20	53	90	200
KPN861	-	83	81-86	8 + 10	127	20	57	98	200
KPN862	3 "	90	87-92	8 + 10	134	20	60	105	200
KPN863	3-1/2 "	100	99-105	8 + 10	144	20	65	115	200
KPN864	-	110	109-112	8 + 10	159	20	70	125	200
KPN865	4 "	115	113-118	8 + 10	164	20	73	130	200
KPN866	-	125	125-130	8 + 10	169	20	78	140	200
KPN867	-	133	132-137	8 + 10	177	20	82	148	200
KPN868	5 "	140	138-142	8 + 10	184	20	85	155	299
KPN869	-	150	148-152	8 + 10	194	20	90	165	299
KPN870	-	160	159-166	8 + 10	204	25	95	175	299
KPN871	6 "	168	168-172	8 + 10	212	25	99	183	299
KPN872	-	200	200-212	8 + 10	244	25	115	215	299
KPN873	8 "	220	215-222	8 + 10	264	25	125	235	299
KPN874	-	250	248-252	8 + 10	294	25	140	265	299
KPN875	-	315	313-318	8 + 10	359	25	173	330	299
