Heavy Duty Rubber Lined U Strap Clamp

Material: Steel.
Size Range:1/2” through 20”.
Finish: Electro-Zinc Plated or epoxy
coating.
M6 side screws with two gaskets.
Designed and recommended for the mounting of insulated or non-insulated pipes,and can be used with rubber supports inserts.

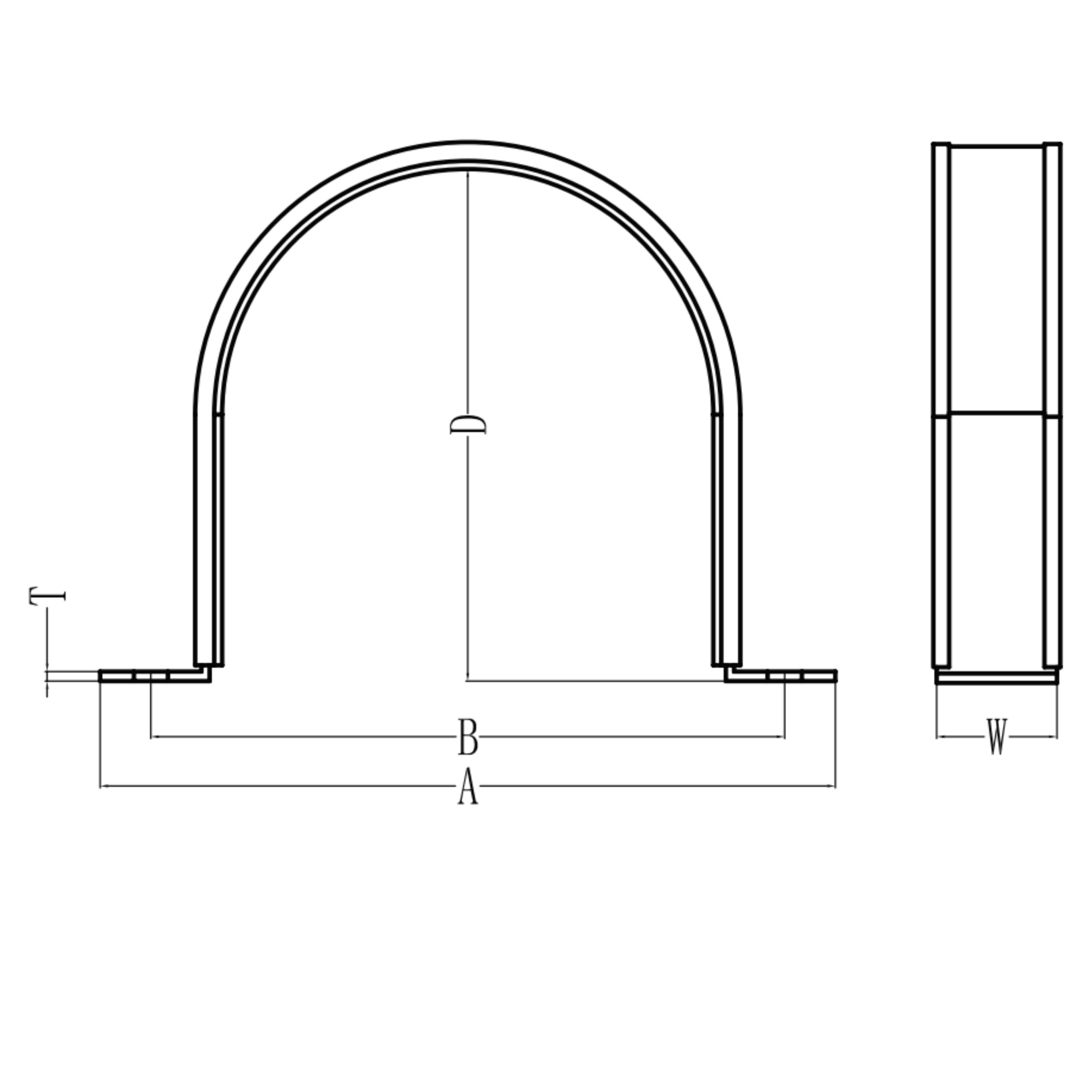

Code	Nominal Pipe Size (IN)	Bolt Size (MM)	Height (D) (MM)	Length From Hole To Hole (B) (mm)	Overall Length (A) (mm)	Thickness (T) (mm)	Width (W) (mm)	Max. Rec. Load (KG)
KPH375	1/2	8	22	51	76	3	25	249
KPH376	3/4	8	28	57	82	3	25	249
KPH377	1	8	35	64	89	3	25	249
KPH378	1-1/4	8	42	71	96	3	25	249
KPH379	1-1/2	8	48	77	102	3	25	249
KPH380	-	8	54	83	108	3	25	249
KPH381	2	8	68	97	122	3	25	295
KPH382	-	8	74	112	144	3	25	295
KPH383	2-1/2	8	81	119	151	3	25	295
KPH384	-	8	90	128	160	3	25	295
KPH385	3	8	96	134	166	3	25	295
KPH386	3-1/2	8	108	146	178	3	25	295
KPH387	-	8	121	159	191	3	25	295
KPH388	4	10	124	162	194	3	25	295
KPH389	-	10	131	169	201	3	25	295
KPH390	5	10	137	175	207	3	25	295
KPH391	-	10	140	178	210	3	25	295
KPH392	-	10	146	184	216	3	25	295
KPH393	6	10	149	187	219	3	38	295
KPH394	-	10	158	196	226	3	38	295
KPH395	-	10	162	200	232	3	38	295
KPH396	-	10	171	209	241	3	38	295
KPH397	8	10	187	225	257	3	38	295
KPH398	-	10	189	227	259	3	38	408
KPH399	-	10	199	250	269	3	38	408
KPH400	-	10	212	254	282	3	38	408
KPH401	10	10	216	273	286	3	38	408
KPH402	-	12	239	277	309	4.5	50	408
KPH403	12	12	266	316	357	4.5	50	612
KPH404	14	18	317	367	408	4.5	50	612
KPH405	-	18	371	421	462	4.5	50	862
KPH406	16	18	422	472	513	4.5	50	862
KPH407	-	18	454	504	545	4.5	50	862
KPH408	18	18	504	554	595	4.5	50	862
KPH409	-	18	555	605	646	4.5	50	862
KPH410	20	18	606	656	697	4.5	50	862
KPH411	-	18	707	767	815	4.5	50	1089
