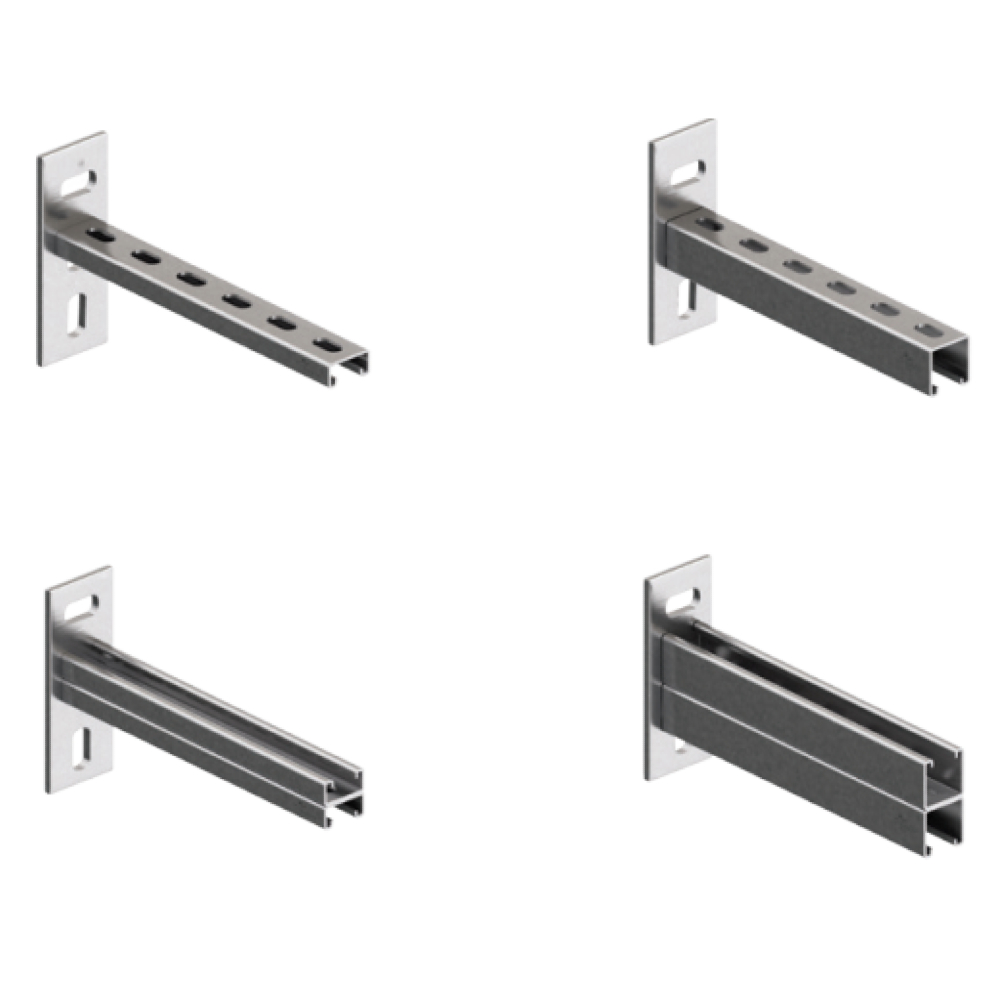

Cantilever Arm (41)

U shaped cross section cantilever arm for medium – heavy applications.
Great flexibility in assembly: Suspended, directly fixed to walls, fixed to other perforated channels.
Compatible with the clamp range from the catalogue, both for piping and electrical needs.
Wall hanger bracket with solid, rounded-edge base plate for the attachment on support channels.
Solid cantilever construction due to support from diagonal strut.
Clip-over edges of the base plate for good appearance.
Variety of set lengths covers all constructional requirements.
Simple height adjustment when mounted in the channel slot.

Code (G)	Code (HD)	Type	Width (mm)	Height (mm)	Thickness (mm)	Length (mm)	A (mm)	B (mm)	C (mm)	D (mm)	L (mm)	W (mm)	T (mm)	Qty. per box (PCS.)
KIV850	KIV950	C-Arms 41/21	21	41	1.5	150	22.3	52	27	14	133	50	4	20
KIV851	KIV951	C-Arms 41/21	21	41	1.5	300	22.3	52	27	14	133	50	4	20
KIV852	KIV952	C-Arms 41/21	21	41	1.5	450	22.3	52	27	14	133	50	4	10
KIV853	KIV953	C-Arms 41/21	21	41	2.5	150	22.3	52	27	14	133	50	4	20
KIV854	KIV954	C-Arms 41/21	21	41	2.5	300	22.3	52	27	14	133	50	4	20
KIV855	KIV955	C-Arms 41/21	21	41	2.5	450	22.3	52	27	14	133	50	4	10
KIV856	KIV956	C-Arms 41/41	41	41	2.5	150	22.3	52	27	14	133	50	4	20
KIV857	KIV957	C-Arms 41/41	41	41	2.5	200	22.3	52	27	14	133	50	4	20
KIV858	KIV958	C-Arms 41/41	41	41	2.5	300	22.3	52	27	14	133	50	4	10
KIV859	KIV959	C-Arms 41/41	41	41	2.5	450	22.3	52	27	14	133	50	4	5
KIV860	KIV960	C-Arms 41/41	41	41	2.5	500	22.3	52	27	14	133	50	4	5
KIV861	KIV961	C-Arms 41/41	41	41	2.5	600	22.3	52	27	14	133	50	4	5
KIV862	KIV962	C-Arms 41/41	41	41	2.5	750	22.3	52	27	14	133	50	4	5
KIV863	KIV963	C-Arms 41/21/D	42	41	2.5	300	22.3	52	27	14	133	50	4	10
KIV864	KIV964	C-Arms 41/21/D	42	41	2.5	450	22.3	52	27	14	133	50	4	10
KIV865	KIV965	C-Arms 41/21/D	42	41	2.5	600	22.3	52	27	14	133	50	4	5
KIV866	KIV966	C-Arms 41/21/D	42	41	2.5	750	22.3	52	27	14	133	50	4	5
KIV867	KIV967	C-Arms 41/41/D	82	41	2.5	300	22.3	52	27	14	133	50	4	10
KIV868	KIV968	C-Arms 41/41/D	82	41	2.5	400	22.3	52	27	14	133	50	4	10
KIV869	KIV969	C-Arms 41/41/D	82	41	2.5	450	22.3	52	27	14	133	50	4	10
KIV870	KIV970	C-Arms 41/41/D	82	41	2.5	500	22.3	52	27	14	133	50	4	5
KIV871	KIV971	C-Arms 41/41/D	82	41	2.5	600	22.3	52	27	14	133	50	4	5
KIV872	KIV972	C-Arms 41/41/D	82	41	2.5	750	22.3	52	27	14	133	50	4	5
KIV873	KIV973	C-Arms 41/41/D	82	41	2.5	800	22.3	52	27	14	133	50	4	5
KIV874	KIV974	C-Arms 41/41/D	82	41	2.5	900	22.3	52	27	14	133	50	4	5
KIV875	KIV975	C-Arms 41/41/D	82	41	2.5	1000	22.3	52	27	14	133	50	4	5
