| Code (G) | Code (HD) | Profile | Flange Thickness (mm) | Overall Length B (mm) | Diameter of Rod (mm) | Distance between rods (mm) | Load (KN) | Qty. per box (PCS.) |
|---|---|---|---|---|---|---|---|---|
| KIX021 | KIX121 | U Channel 21 | 6 | 98 | 10 | 10 | 5 | 25 |
| KIX041 | KIX141 | U Channel 41 | 6 | 98 | 10 | 10 | 8 | 25 |
| KIX062 | KIX162 | U Channel 62 | 6 | 98 | 10 | 10 | 10 | 25 |

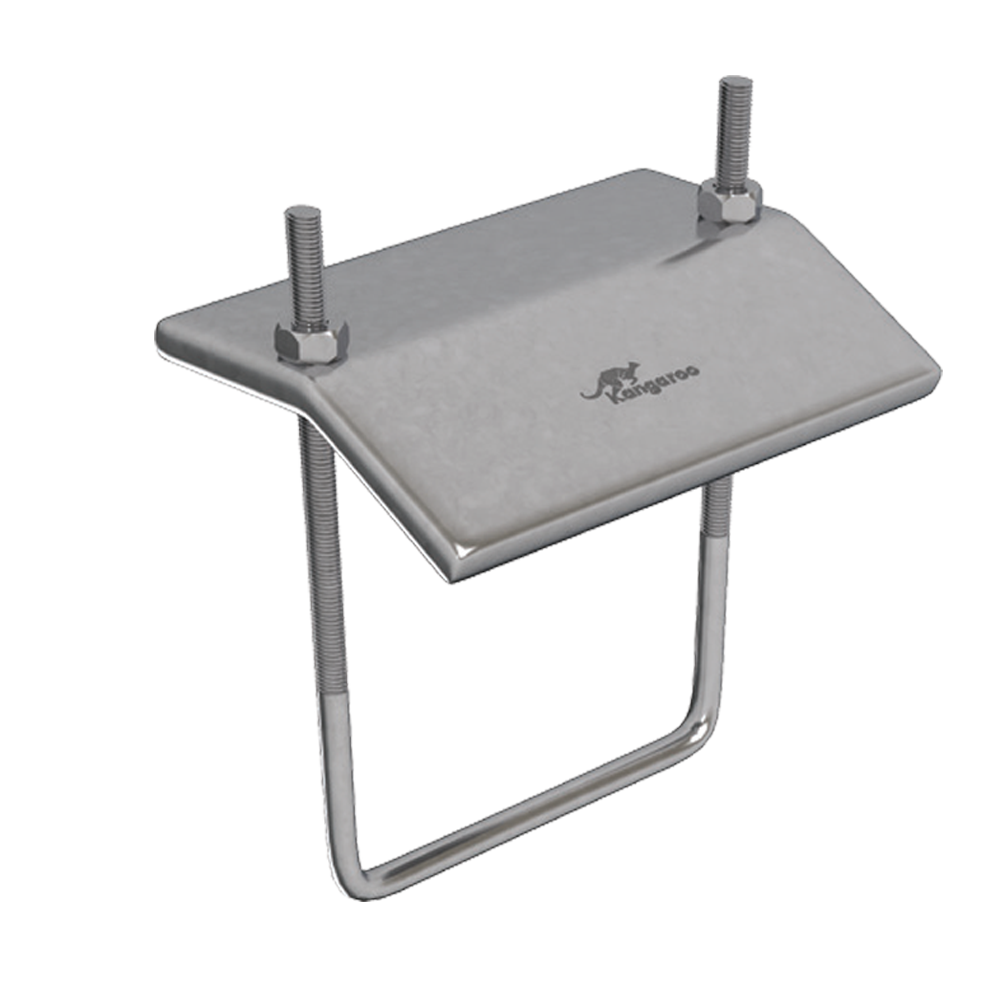

U bolt beam clamp (41)
- U bolt beam clamp for fastening channels to steel girders.
