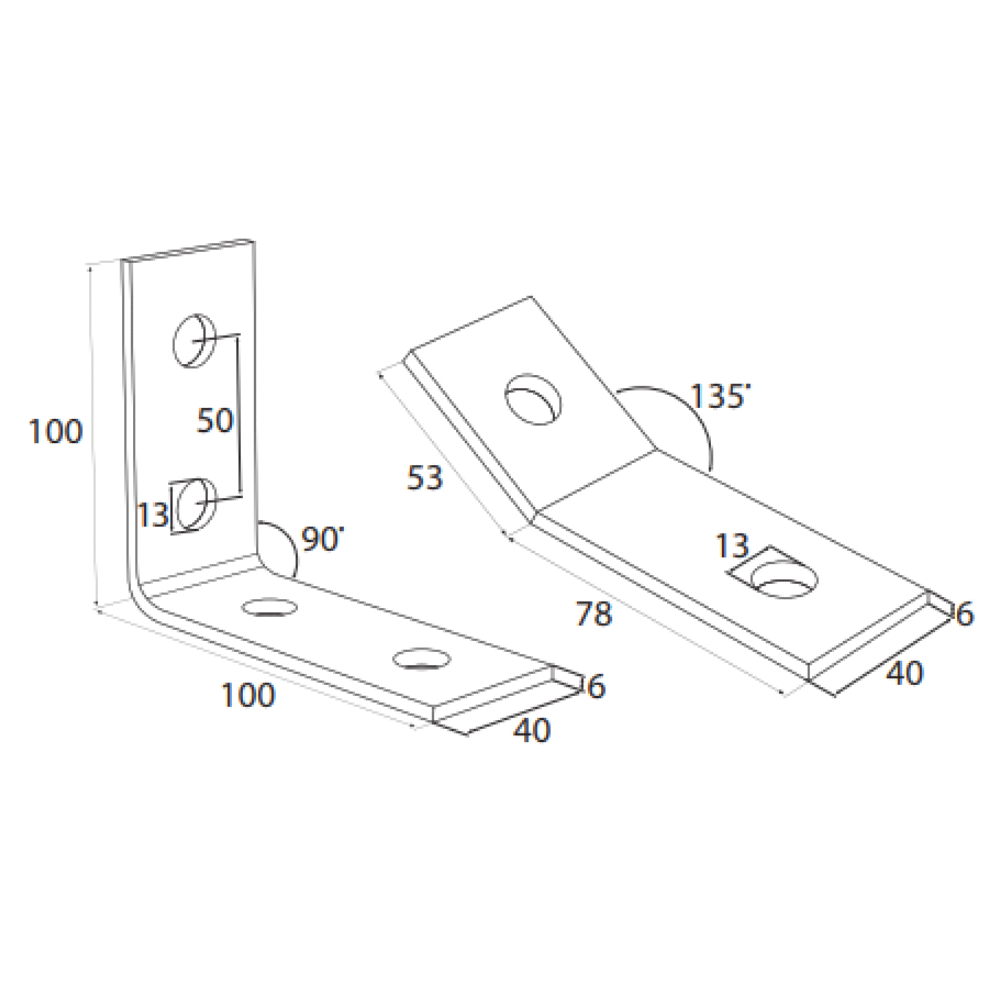

| Code (G) | Code (HD) | Type | Length (mm) | Height (mm) | Width (mm) | Hole Diameter (mm) | Thickness (mm) | Angle (degree) | Qty. per box (PCS.) |
|---|---|---|---|---|---|---|---|---|---|
| KIY040 | KIY140 | Angle bracket 90-2 hole | 48 | 50 | 40 | 13 | 6 | 90 ° | 25 |
| KIY041 | KIY141 | Angle bracket 90-3 hole | 100 | 40 | 40 | 13 | 6 | 90 ° | 25 |
| KIY042 | KIY142 | Angle bracket 90-4 hole | 100 | 100 | 40 | 13 | 6 | 90 ° | 25 |
| KIY043 | KIY143 | Angle bracket 135-2 hole | 78 | 53 | 40 | 13 | 6 | 135 ° | 25 |

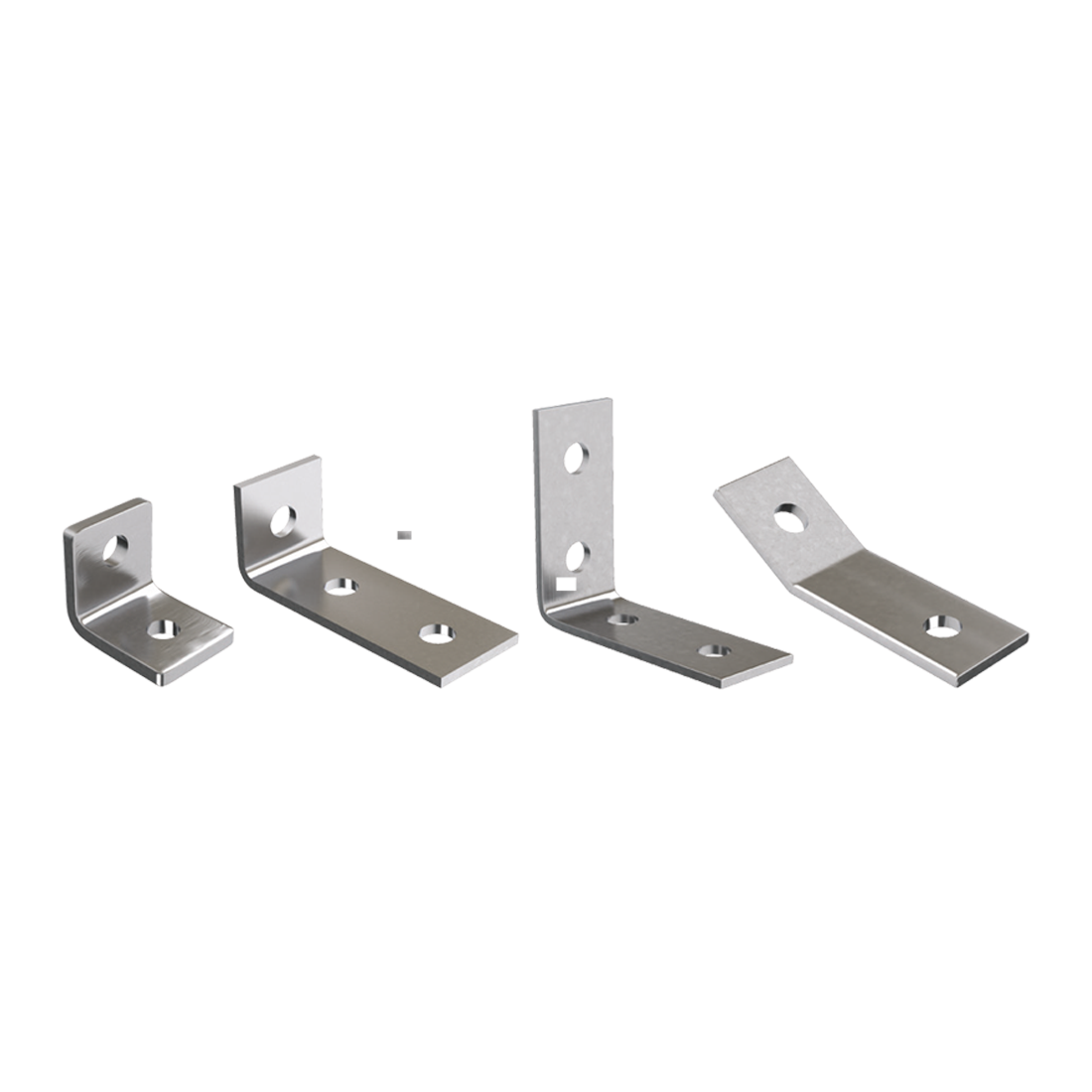

Angle Brackets (41)

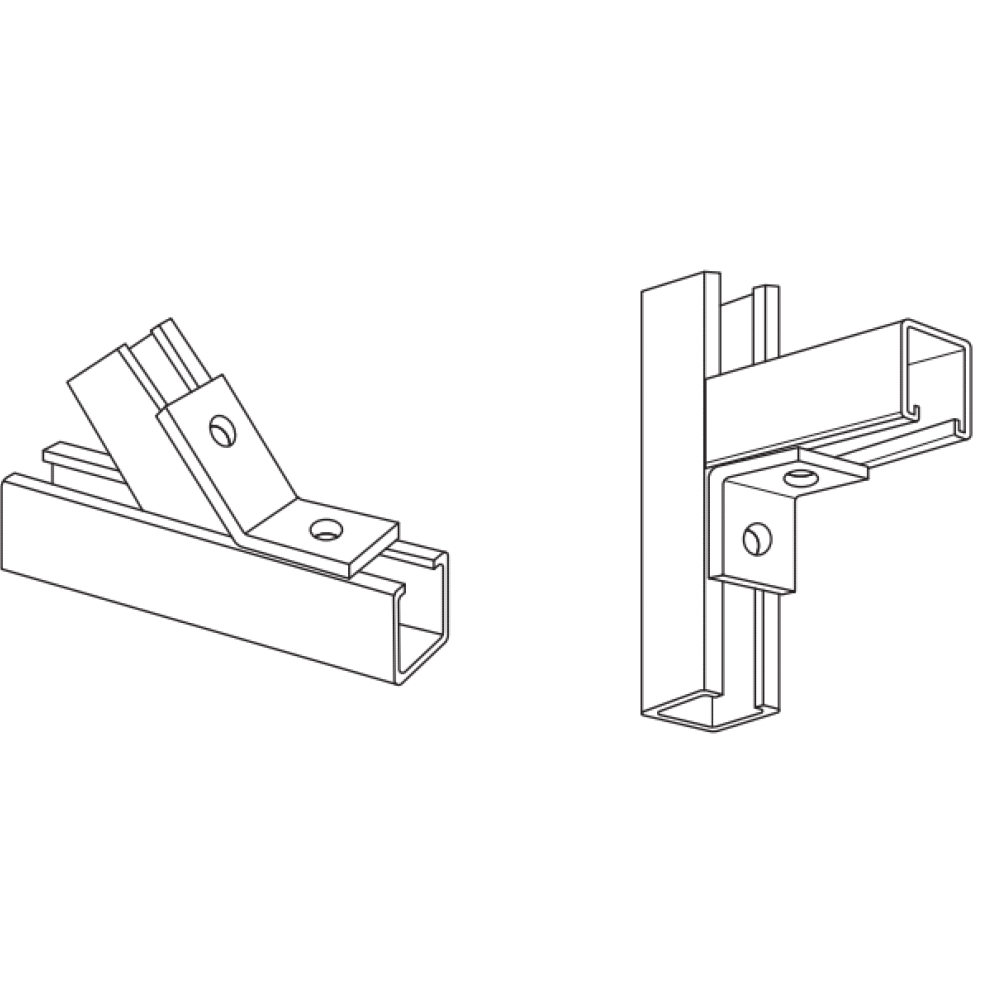

- Installation angle brackets for connection with U channels.
