| Code (G) | Code (HD) | Width (mm) | Height (mm) | Thickness (mm) | Length (mm) | A (mm) | B (mm) | C (mm) | D (mm) | L (mm) | W (mm) | T (mm) | Qty. per box (PCS.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KIC231 | KIC931 | 27 | 18 | 1.25 | 180 | 15.50 | 52.00 | 30.00 | 11.00 | 120 | 40 | 4 | 20 |
| KIC232 | KIC932 | 27 | 18 | 1.25 | 300 | 15.50 | 52.00 | 30.00 | 11.00 | 120 | 40 | 4 | 20 |
| KIC233 | KIC933 | 27 | 30 | 1.50 | 180 | 15.50 | 52.00 | 30.00 | 11.00 | 120 | 40 | 6 | 10 |
| KIC234 | KIC934 | 27 | 30 | 1.50 | 240 | 15.50 | 52.00 | 30.00 | 11.00 | 120 | 40 | 6 | 10 |
| KIC235 | KIC935 | 27 | 30 | 1.50 | 360 | 15.50 | 52.00 | 30.00 | 11.00 | 120 | 40 | 6 | 10 |
| KIC236 | KIC936 | 27 | 30 | 1.50 | 540 | 15.50 | 52.00 | 30.00 | 11.00 | 120 | 40 | 6 | 5 |
| KIC237 | KIC937 | 27 | 30 | 1.50 | 660 | 15.50 | 52.00 | 30.00 | 11.00 | 120 | 40 | 6 | 5 |

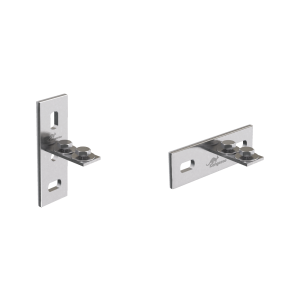

Cantilever Arm (27)
- C shaped cross section cantilever arm for light applications.
- Wall plate with welded C-profile.
- Perfectly suitable for hanging to the ceiling.
- Slots at 90° to each other to simplify fixing.
- CO2 welded.
- Great flexibility in assembly: Suspended, directly fixed to walls, fixed to other perforated channels.
- Compatible with the clamp range from the catalogue, both for piping and electrical needs.
