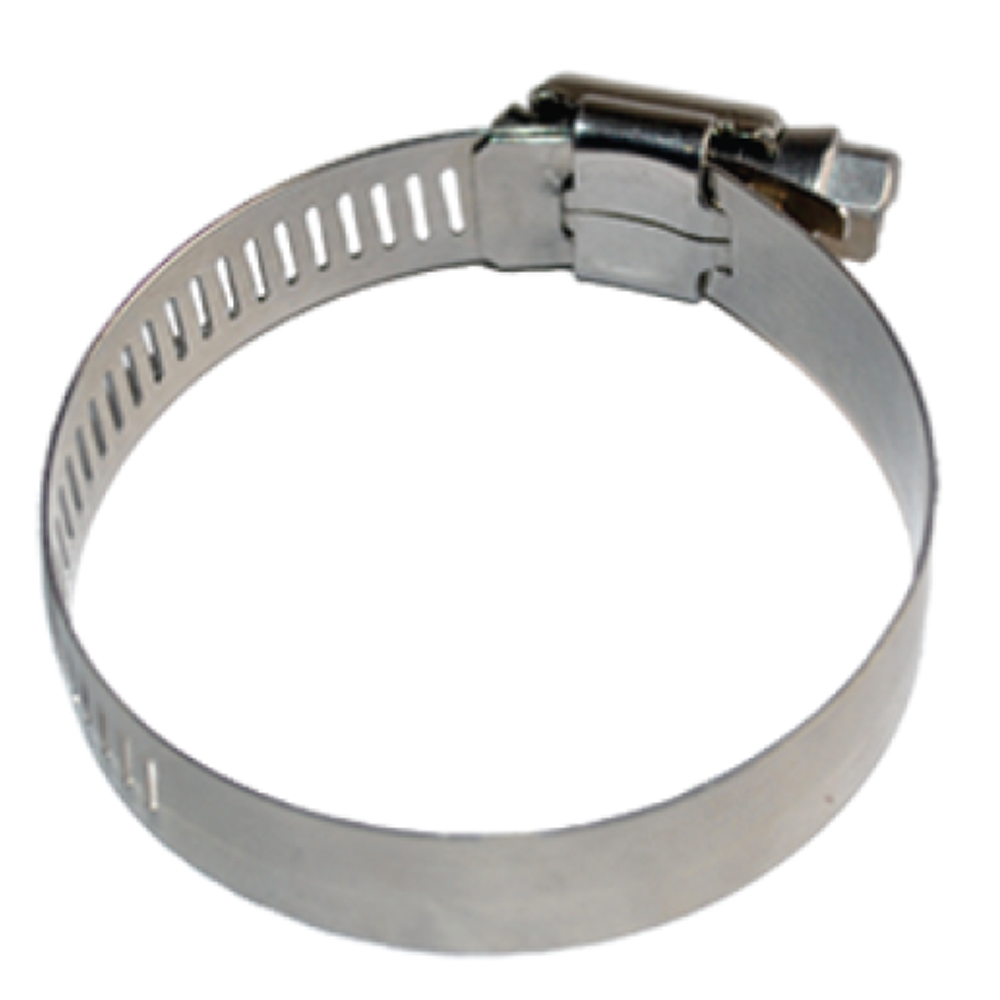

Worm Drive Hose Clamp

Premium grade seal stainless steel hose clamps are made to exacting SAE standards.
Strong mechanical joint between band and housing produces high clamp force with moderate tightening of screw.
200/300 series stainless steel band, housing and screw construction provides excellent corrosion resistance.
Suitable for use in multiple applications including sealing and bundling 501502/501503/501504 will meet different material requirement.

	200/C	200/200	300/300	316/316
Band material	AISI 200 series SS	AISI 200 series SS	AISI 300 series SS	AISI 316 SS
Housing material	AISI 200 series SS	AISI 200 series SS	AISI 300 series SS	AISI 316 SS
Screw material	Carbon steel (1)	AISI 200 series SS	AISI 300 series SS	AISI 316 SS
Recommended installation torque	30-40 in. Ibs. (4.5-5.1 Nm)	35-45 in. Ibs. (4.5-5.1 Nm)	35-45 in. Ibs. (4.5-5.1 Nm)	35-45 in. Ibs. (4.5-5.1 Nm)

Hose clamp series	Hose clamp series	Hose clamp series	Hose clamp series	Hose clamp series	Diameter range	Diameter range
SAE Size No.	200/C	200/200	300/300	316/316	Min. (mm)	Max. (mm)
4	KPG140	KPG240	KPG340	KPG440	5	16
6	KPG141	KPG241	KPG341	KPG441	11	20
8	KPG142	KPG242	KPG342	KPG442	11	23
10	KPG143	KPG243	KPG343	KPG443	14	27
12	KPG144	KPG244	KPG344	KPG444	18	32
16	KPG145	KPG245	KPG345	KPG445	19	38
20	KPG146	KPG246	KPG346	KPG446	21	44
24	KPG147	KPG247	KPG347	KPG447	27	51
28	KPG148	KPG248	KPG348	KPG448	33	57
32	KPG149	KPG249	KPG349	KPG449	40	64
36	KPG150	KPG250	KPG350	KPG450	46	70
40	KPG151	KPG251	KPG351	KPG451	52	76
44	KPG152	KPG252	KPG352	KPG452	59	83
48	KPG153	KPG253	KPG353	KPG453	65	89
52	KPG154	KPG254	KPG354	KPG454	71	95
56	KPG155	KPG255	KPG355	KPG455	78	102
60	KPG156	KPG256	KPG356	KPG456	84	108
64	KPG157	KPG257	KPG357	KPG457	90	114
72	KPG158	KPG258	KPG358	KPG458	103	127
80	KPG159	KPG259	KPG359	KPG459	116	140
88	KPG160	KPG260	KPG360	KPG460	129	152
96	KPG161	KPG261	KPG361	KPG461	141	165
104	KPG162	KPG262	KPG362	KPG462	154	178
