Wood Flat Drill Bit
- With long center point with chip ejection clearance for exact entry.
- Slanting main cutting edges for slabbing cut.
- Conical side cutting edges prevent seizing and make for cleanly drilled holes.
- Hexagon shank avoids slipping in drill chuck.
- Deep holes can be drilled with extension.
- Spade drill bit, with ¼” hexagonal shank according to DIN 3126-E6.3, ground, hardened, with chip breaker geometry.
- For drilling of soft and hard wood, particleboard, gypsum board, plywood, veneers, and chipboard etc.

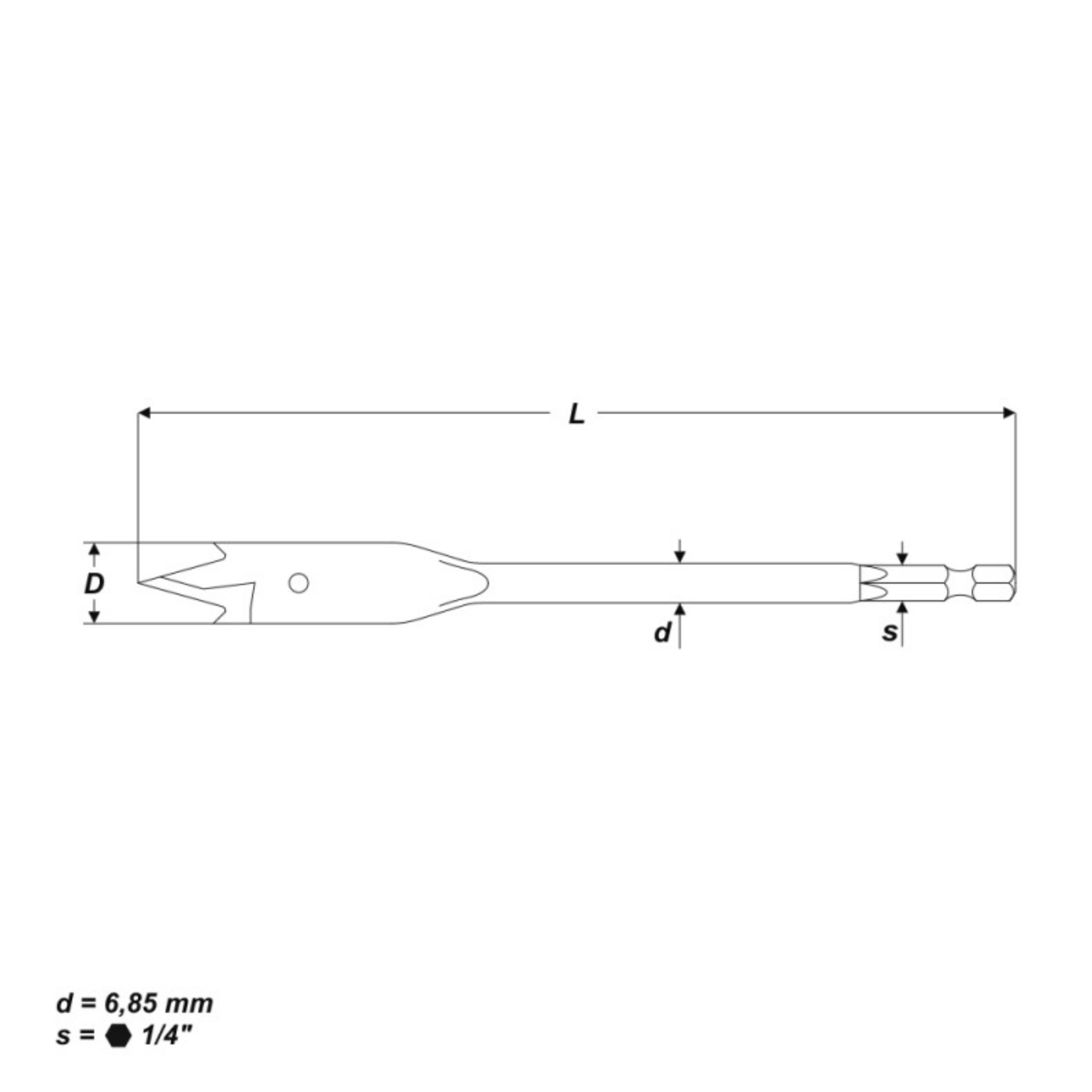

Code | Diameter (mm) | Total Length (mm) |
KRK501 | 6.0 | 158 |
KRK502 | 6.5 | 158 |
KRK503 | 8.0 | 158 |
KRK504 | 10.0 | 158 |
KRK505 | 11.0 | 158 |
KRK506 | 12.0 | 158 |
KRK507 | 13.0 | 158 |
KRK508 | 14.0 | 158 |
KRK509 | 15.0 | 158 |
KRK510 | 16.0 | 158 |
KRK511 | 17.0 | 158 |
KRK512 | 18.0 | 158 |
KRK513 | 19.0 | 158 |
KRK514 | 20.0 | 158 |
KRK515 | 22.0 | 158 |
KRK516 | 24.0 | 161 |
KRK517 | 25.0 | 161 |
KRK518 | 26.0 | 161 |
KRK519 | 28.0 | 174 |
KRK520 | 30.0 | 174 |
KRK521 | 32.0 | 174 |
KRK522 | 34.0 | 174 |
KRK523 | 35.0 | 174 |
KRK524 | 36.0 | 174 |
KRK525 | 38.0 | 174 |
KRK526 | 40.0 | 174 |
