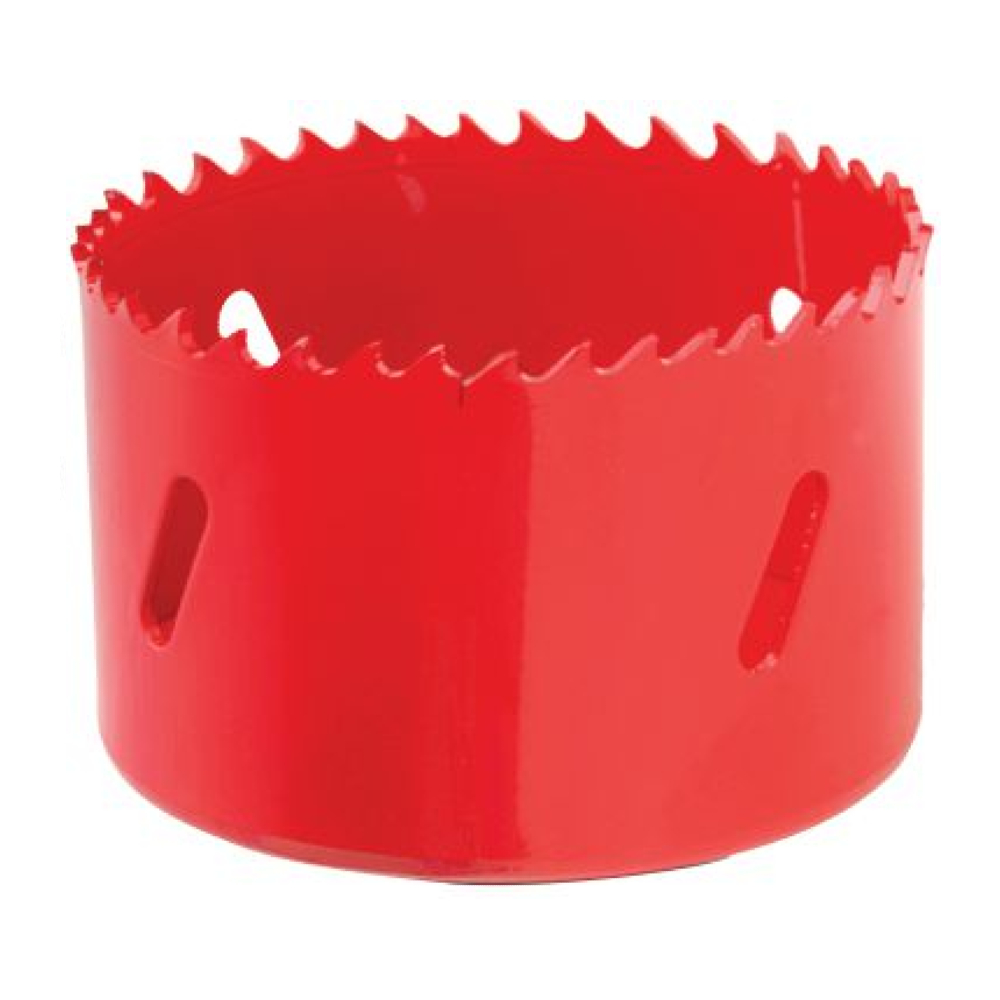

Metal Hole Saw
- Regular pitch.
- BiM-Co (Bi-metal with 8%Co), teeth milled, side set.
- Variable tooth splitting for less vibration.
- Excellent cutting results in (alloyed) steel and stainless steel due to 8% cobalt alloy base material.
- Less heat production.
- Robust design with extra firm lid for more stability.
- High precision of concentric running.
- Smoother cutting.
- Cutting depth up to 38 mm.
- Used by an adapter for bi-metal hole saws with hexagonal shank Ø 1/4 “[5/8” x 18 UNF] [10 mm].
- For sawing holes in most commonly used metals, plastics and woods.
- Material groups: 1.1-1.5 / 1.6 / 2.1 – 2.2 / 2.3 / 3.1 – 3.3 / 4.1 – 4.12
- RPM 1: recommended speed for Wrought Steel.
- RPM 2: recommended speed for Cast Iron.
- RPM 3: recommended speed for Stainless Steel.
- RPM 4: recommended speed for Copper Brass.
- RPM 5: recommended speed for Aluminum.
| Code | Diameter (mm) | RPM 1 | RPM 2 | RPM 3 | RPM 4 | RPM 5 |
| KRS101 | 14.0 | 580 | 400 | 300 | 790 | 900 |
| KRS102 | 16.0 | 550 | 365 | 275 | 730 | 825 |
| KRS103 | 17.0 | 500 | 330 | 250 | 665 | 750 |
| KRS104 | 19.0 | 460 | 300 | 230 | 600 | 690 |
| KRS105 | 20.0 | 440 | 290 | 220 | 580 | 660 |
| KRS106 | 21.0 | 425 | 280 | 210 | 560 | 635 |
| KRS107 | 22.0 | 390 | 260 | 195 | 520 | 585 |
| KRS108 | 24.0 | 370 | 245 | 185 | 495 | 555 |
| KRS109 | 25.0 | 350 | 235 | 175 | 470 | 525 |
| KRS110 | 27.0 | 325 | 215 | 160 | 435 | 480 |
| KRS111 | 29.0 | 300 | 200 | 150 | 400 | 450 |
| KRS112 | 30.0 | 285 | 190 | 145 | 380 | 425 |
| KRS113 | 32.0 | 275 | 180 | 140 | 380 | 410 |
| KRS114 | 33.0 | 260 | 175 | 135 | 345 | 390 |
| KRS115 | 35.0 | 250 | 165 | 125 | 330 | 375 |
| KRS116 | 37.0 | 240 | 160 | 120 | 315 | 360 |
| KRS117 | 38.0 | 230 | 150 | 115 | 300 | 345 |
| KRS118 | 40.0 | 220 | 145 | 110 | 290 | 330 |
| KRS119 | 41.0 | 210 | 140 | 105 | 280 | 315 |
| KRS120 | 43.0 | 205 | 135 | 100 | 270 | 305 |
| KRS121 | 44.0 | 195 | 130 | 95 | 260 | 295 |
| KRS122 | 45.0 | 190 | 125 | 95 | 250 | 285 |
| KRS123 | 46.0 | 190 | 125 | 95 | 250 | 285 |
| KRS124 | 48.0 | 180 | 120 | 90 | 240 | 270 |
| KRS125 | 50.0 | 170 | 115 | 85 | 230 | 255 |
| KRS126 | 51.0 | 170 | 115 | 85 | 230 | 255 |
| KRS127 | 52.0 | 165 | 110 | 80 | 220 | 245 |
| KRS128 | 54.0 | 160 | 105 | 80 | 210 | 240 |
| KRS129 | 55.0 | 150 | 100 | 75 | 200 | 225 |
| KRS130 | 57.0 | 150 | 100 | 75 | 200 | 225 |
| KRS131 | 59.0 | 145 | 100 | 75 | 195 | 225 |
| KRS132 | 60.0 | 140 | 95 | 70 | 190 | 220 |
| KRS133 | 64.0 | 135 | 90 | 65 | 180 | 205 |
| KRS134 | 65.0 | 130 | 85 | 65 | 175 | 200 |
| KRS135 | 67.0 | 130 | 85 | 65 | 170 | 195 |
| KRS136 | 68.0 | 125 | 80 | 60 | 160 | 185 |
| KRS137 | 70.0 | 125 | 80 | 60 | 160 | 185 |
| KRS138 | 73.0 | 120 | 80 | 60 | 160 | 180 |
| KRS139 | 75.0 | 115 | 75 | 55 | 150 | 170 |
| KRS140 | 76.0 | 115 | 75 | 55 | 150 | 170 |
| KRS141 | 79.0 | 110 | 70 | 55 | 140 | 165 |
| KRS142 | 83.0 | 105 | 70 | 50 | 140 | 155 |
| KRS143 | 86.0 | 100 | 65 | 50 | 130 | 150 |
| KRS144 | 89.0 | 95 | 65 | 50 | 130 | 145 |
| KRS145 | 92.0 | 95 | 60 | 45 | 120 | 140 |
| KRS146 | 95.0 | 90 | 60 | 45 | 120 | 135 |
| KRS147 | 98.0 | 90 | 60 | 45 | 120 | 133 |
| KRS148 | 102.0 | 85 | 55 | 40 | 110 | 130 |
| KRS149 | 105.0 | 80 | 55 | 40 | 110 | 120 |
| KRS150 | 108.0 | 80 | 55 | 40 | 110 | 120 |
| KRS151 | 111.0 | 80 | 50 | 40 | 100 | 110 |
| KRS152 | 114.0 | 75 | 50 | 35 | 100 | 105 |
| KRS153 | 121.0 | 75 | 50 | 35 | 95 | 95 |
| KRS154 | 127.0 | 65 | 45 | 30 | 90 | 90 |
| KRS155 | 140.0 | 60 | 40 | 25 | 85 | 85 |
| KRS156 | 146.0 | 55 | 35 | 25 | 75 | 75 |
| KRS157 | 152.0 | 55 | 35 | 25 | 75 | 75 |
