SDS Plus Drill Bit
Hammer drill bit with SDS-plus shank (ø10mm).
Carbide tip in special alloy.
Special brazing process to withstand extreme heat.
Straight shank with four grooves.
For drilling of all sorts of stone and concrete, marble, tiles, granite, brick walls and natural stone or rock.
Innovative design with 4 cutting edges allows easy centring and pilot-drilling, ensures less friction and better guidance which results in better hole geometry, longer tool life with fast drilling speeds due to unique geometry of the carbide tip, maximized stability, comfortable and low-vibration operation due to reinforced core.
Right hand cut.
Point angle.
DIN 8035.

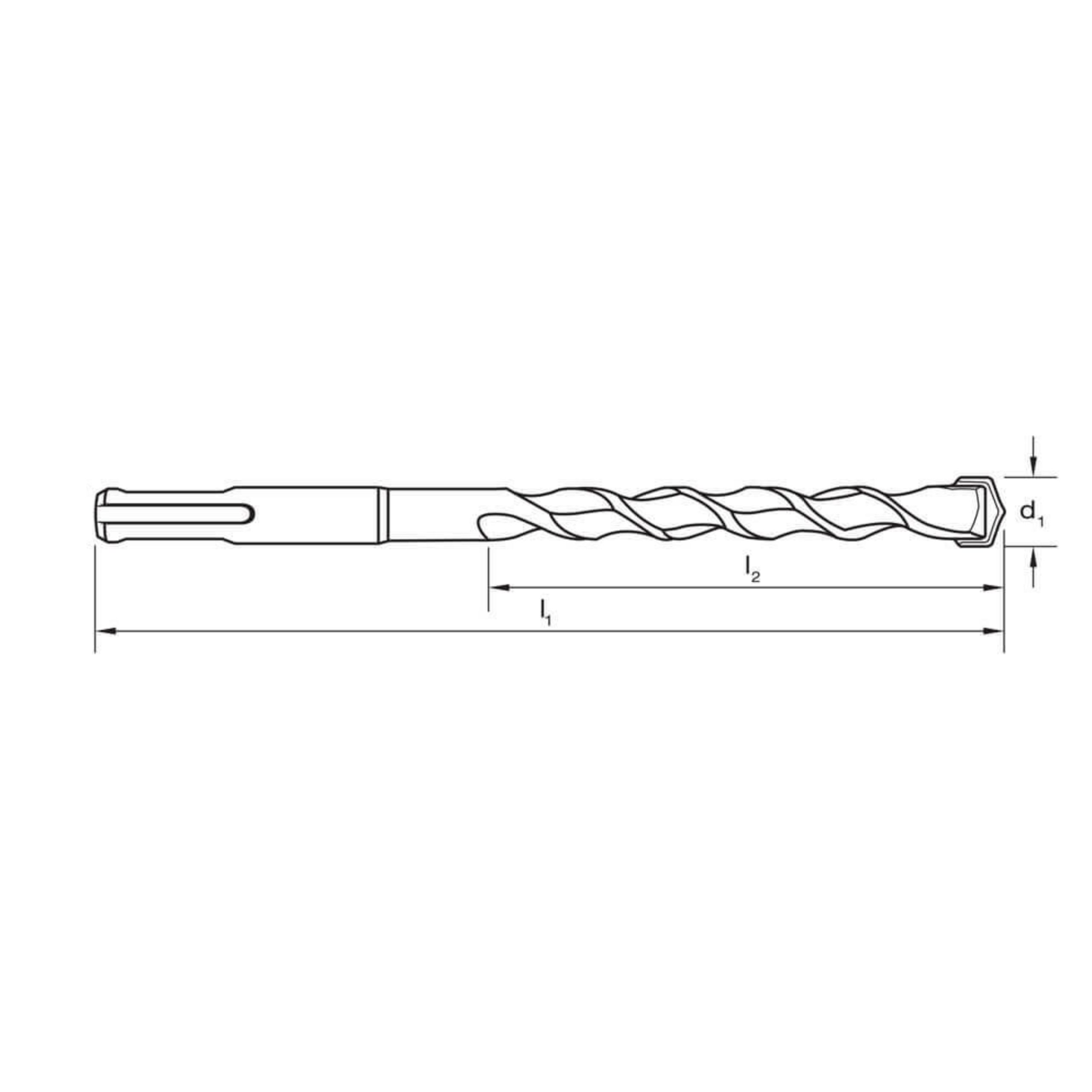

Code Diameter (mm) Effective Length (mm) Overall Length (mm)
KRA101 5.0 50 115
KRA102 5.0 100 165
KRA103 5.0 150 215
KRA104 5.0 200 265
KRA105 5.0 250 315
KRA106 5.5 50 115
KRA107 5.5 100 165
KRA108 6.0 50 115
KRA109 6.0 100 165
KRA110 6.0 150 215
KRA111 6.0 200 265
KRA112 6.0 250 315
KRA113 6.5 100 165
KRA114 6.5 150 215
KRA115 6.5 200 265
KRA116 6.5 250 315
KRA117 7.0 50 115
KRA118 7.0 100 165
KRA119 7.0 150 215
KRA120 8.0 50 115
KRA121 8.0 100 165
KRA122 8.0 150 215
KRA123 8.0 200 265
KRA124 8.0 250 315
KRA125 8.0 300 365
KRA126 8.0 400 465
KRA127 9.0 150 215
KRA128 9.0 200 265
KRA129 10.0 50 115
KRA130 10.0 100 165
KRA131 10.0 150 215
KRA132 10.0 200 265
KRA133 10.0 250 315
KRA134 10.0 300 365
KRA135 10.0 400 465
KRA136 10.0 540 600
KRA137 10.0 940 1000
KRA138 11.0 110 160
KRA139 11.0 160 210
KRA140 11.0 210 260
KRA141 11.0 260 310
KRA142 12.0 110 160
KRA143 12.0 160 210
KRA144 12.0 210 260
KRA145 12.0 260 310
KRA146 12.0 400 450
KRA147 12.0 550 600
KRA148 12.0 950 1000
KRA149 13.0 110 160
KRA150 13.0 160 210
KRA151 13.0 210 260
KRA152 13.0 260 310
KRA153 14.0 110 160
KRA154 14.0 160 210
KRA155 14.0 210 260
KRA156 14.0 260 310
KRA157 14.0 400 450
KRA158 14.0 550 600
KRA159 14.0 950 1000
KRA160 15.0 110 160
KRA161 15.0 160 210
KRA162 15.0 210 260
KRA163 15.0 400 450
KRA164 16.0 110 160
KRA165 16.0 160 210
KRA166 16.0 210 260
KRA167 16.0 260 310
KRA168 16.0 400 450
KRA169 16.0 550 600
KRA170 16.0 950 1000
KRA171 18.0 200 250
KRA172 18.0 400 450
KRA173 18.0 550 600
KRA174 20.0 200 250
KRA175 20.0 400 450
KRA176 20.0 550 600
KRA177 22.0 200 250
KRA178 22.0 400 450
KRA179 22.0 550 600
KRA180 24.0 200 250
KRA181 24.0 400 450
KRA182 24.0 550 600
KRA183 25.0 200 250
KRA184 25.0 400 450
KRA185 25.0 550 600
KRA186 26.0 200 250
KRA187 26.0 400 450
KRA188 26.0 550 600
KRA189 28.0 200 250
KRA190 28.0 400 450
KRA191 30.0 200 250
KRA192 30.0 400 450
KRA193 32.0 400 450
