U Channels (41)

U shaped cross section channel for medium – heavy applications.
Great flexibility in assembly: Suspended, directly fixed to walls, fixed to other perforated channels.
Compatible with the clamp range from the catalogue, both for piping and electrical needs.
Ideal for pipe installation as support structure as well as for air ducts in dry interiors.
Variety of mounting options for pre-wall installations and shelves in combination with extensive range of system components.
Fast and efficient attachment of piping and pipe routes.
High bending stiffness due to the cross-section design.
For secure fixing that is adjustable laterally and vertically.
For setting up structures with correctly measured static loads by means of diverse connection components.

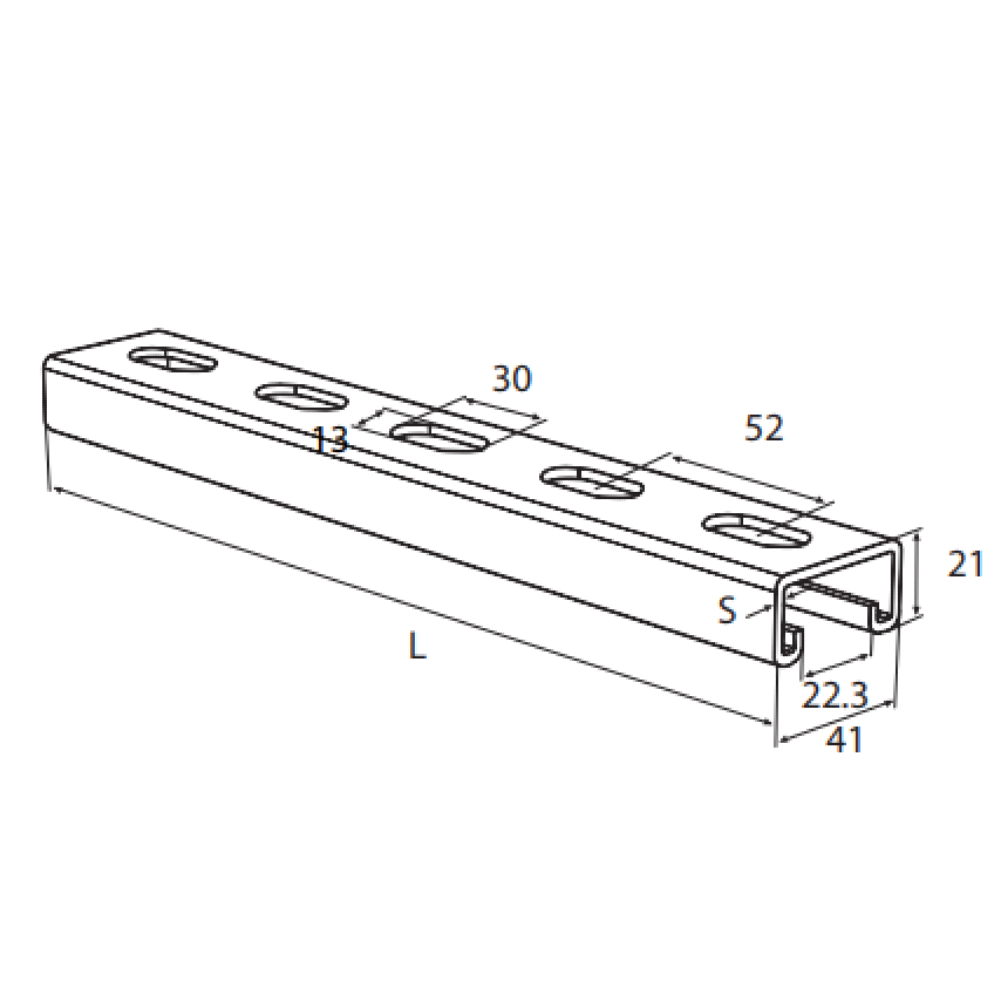

Code (G)	Code (HD)	Type	Width (mm)	Height (mm)	Thickness (mm)	Length (mm)	A (mm)	B (mm)	C (mm)	D (mm)	Qty per box (PCS.)
KIL700	KIL900	41/21	41	21	1.5	2000	22.30	52	30	13	100
KIL701	KIL901	41/21	41	21	1.5	3000	22.30	52	30	13	100
KIL702	KIL902	41/21	41	21	1.5	6000	22.30	52	30	13	100
KIL703	KIL903	41/21	41	21	2.0	2000	22.30	52	30	13	100
KIL704	KIL904	41/21	41	21	2.0	3000	22.30	52	30	13	100
KIL705	KIL905	41/21	41	21	2.0	6000	22.30	52	30	13	100
KIL706	KIL906	41/21	41	21	2.5	2000	22.30	52	30	13	100
KIL707	KIL907	41/21	41	21	2.5	3000	22.30	52	30	13	100
KIL708	KIL908	41/21	41	21	2.5	6000	22.30	52	30	13	100
KIL709	KIL909	41/41	41	41	1.5	2000	22.30	52	30	13	100
KIL710	KIL910	41/41	41	41	1.5	3000	22.30	52	30	13	100
KIL711	KIL911	41/41	41	41	1.5	6000	22.30	52	30	13	100
KIL712	KIL912	41/41	41	41	2.0	2000	22.30	52	30	13	100
KIL713	KIL913	41/41	41	41	2.0	3000	22.30	52	30	13	100
KIL714	KIL914	41/41	41	41	2.0	6000	22.30	52	30	13	100
KIL715	KIL915	41/41	41	41	2.5	2000	22.30	52	30	13	100
KIL716	KIL916	41/41	41	41	2.5	3000	22.30	52	30	13	100
KIL717	KIL917	41/41	41	41	2.5	6000	22.30	52	30	13	100
KIL718	KIL918	41/62	41	62	2.5	3000	22.30	52	30	13	100
KIL719	KIL919	41/62	41	62	2.5	6000	22.30	52	30	13	100
KIL720	KIL920	41/21/D	41	42	2.5	3000	22.30	52	30	13	50
KIL721	KIL921	41/21/D	41	42	2.5	6000	22.30	52	30	13	50
KIL722	KIL922	41/41/D	41	82	2.5	3000	22.30	52	30	13	50
KIL723	KIL923	41/41/D	41	82	2.5	6000	22.30	52	30	13	50
KIL724	KIL924	41/62/D	41	124	2.5	6000	22.30	52	30	13	50
