| Code (G) | Code (HD) | Version | A (mm) | B (mm) | C (mm) | D (mm) | L (mm) | W (mm) | T (mm) | Qty. per box (PCS.) |
|---|---|---|---|---|---|---|---|---|---|---|
| KIG700 | KIG800 | vertical | 31 | 3 | 18 | 11 | 114 | 50 | 5 | 10 |
| KIG701 | KIG801 | Horizontal | 31 | 3 | 18 | 11 | 124 | 40 | 5 | 10 |

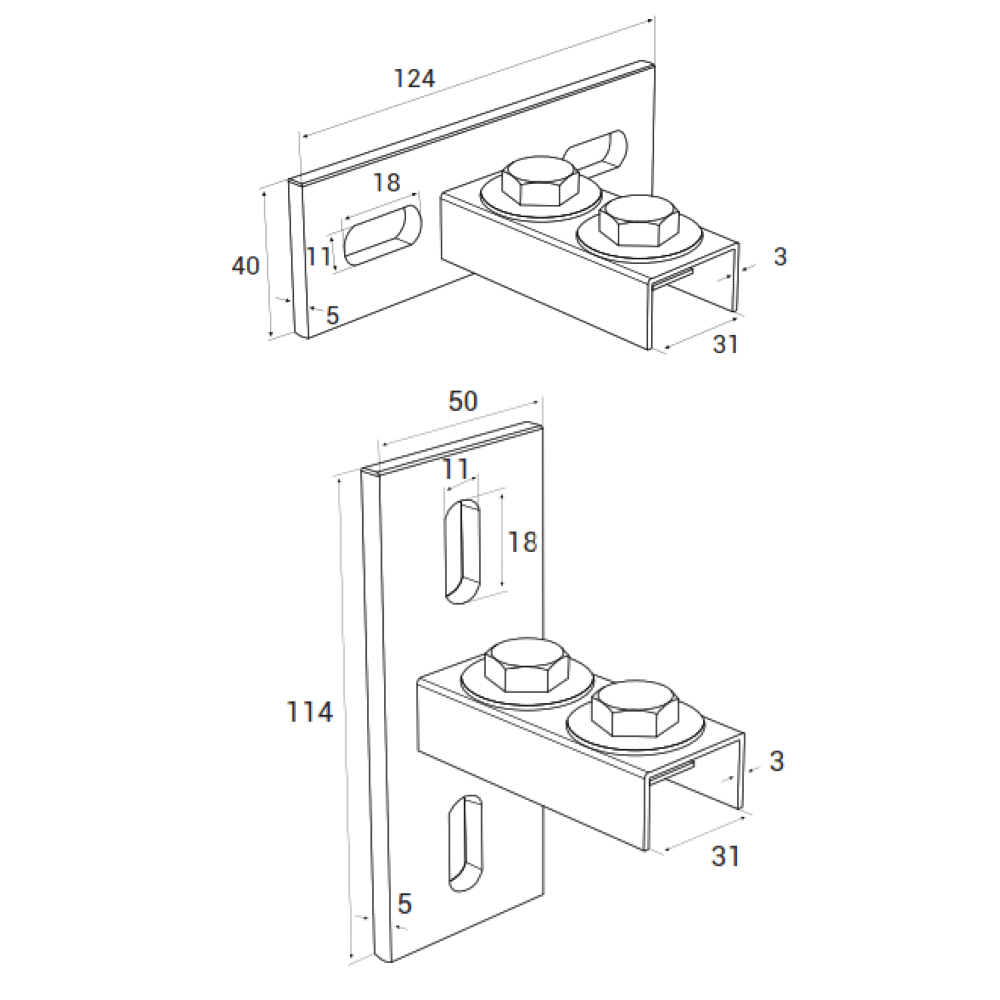

U Wall Bracket (27)
- U Shaped Wall bracket for fixing with C channels.
