Ceramic Cutting Blade
- The right disc for the highest demands on lifetime with 10 mm segment height.
- Good cutting quality without rough edges even in extra-hard fine stone slabs and marble.
- Sintered cutting rim.

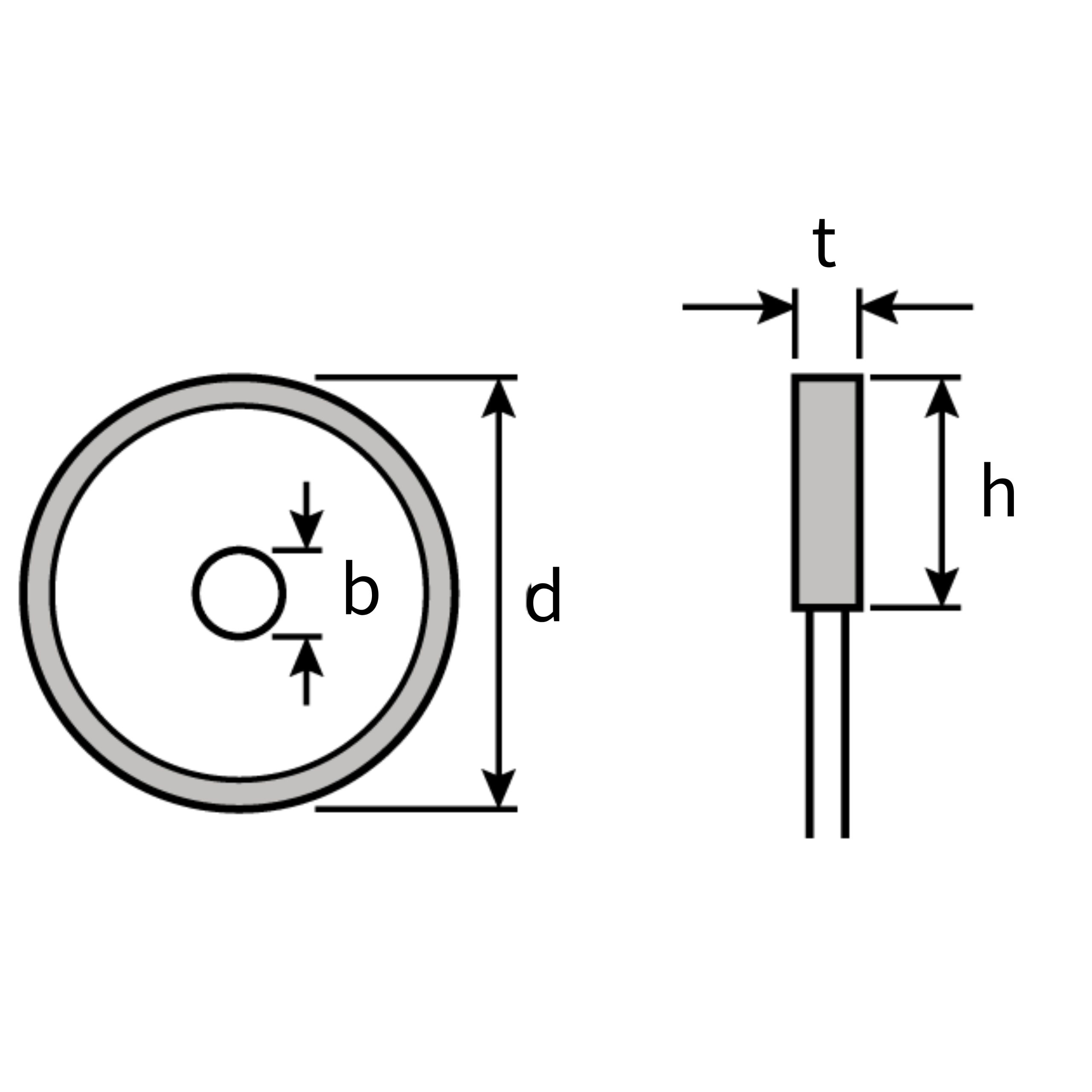

| Code | Diameter (d) (mm) | Bore Diameter (b) (mm) | Segment Height (h) (mm) | Segment Thickness (t) (mm) |
| KBD101 | 110 | 22.23 | 10 | 2.0 |
| KBD102 | 115 | 22.23 | 10 | 2.0 |
| KBD103 | 125 | 22.23 | 10 | 2.4 |
| KBD104 | 150 | 22.23 | 10 | 2.4 |
| KBD105 | 180 | 22.23 | 10 | 2.6 |
| KBD106 | 200 | 22.23 | 10 | 2.8 |
| KBD107 | 230 | 22.23 | 10 | 2.8 |
| KBD108 | 250 | 25.4 / 27 / 50 / 60 | 10 | 2.8 |
| KBD109 | 300 | 25.4 / 27 / 50 / 60 | 10 | 3.0 |
| KBD110 | 350 | 25.4 / 27 / 50 / 60 | 10 | 3.0 |
| KBD111 | 400 | 25.4 / 27 / 50 / 60 | 10 | 3.2 |
